What IP rating do you need for a covered side passage?
A covered side passage requires at least IP44, which guards against splashing water from any direction and suits partially sheltered outdoor areas.
IP ratings define how well a fitting resists dust and moisture. The first digit covers solids; the second covers water. IP44 means the fitting can handle water splashing from any direction — which is exactly what a covered side passage encounters when rain drives sideways or bounces off hard surfaces.
A fully exposed wall would demand IP65 or higher, but a passage with a roof overhead genuinely changes the exposure level. IP44 is the practical minimum here, and most quality outdoor wall lights in this bracket are built to handle that environment without degrading over a typical British winter.
If your passage is open at both ends and particularly exposed to prevailing wind, consider stepping up to IP54 or IP65 for extra peace of mind. The difference in price is usually modest, and the longevity benefit is real. Avoid any fitting rated below IP44 — even under cover, condensation and indirect rain ingress will eventually damage an inadequately rated unit.
Key points to check on the product specification:
- IP rating clearly stated as IP44 minimum
- Gasket seals around the glass and base plate
- Corrosion-resistant materials (die-cast aluminium or marine-grade plastic)
- UV-stable finish to prevent fading in daylight
What size and projection should you choose for a narrow passage?
For a passage under 1.2 metres wide, choose a wall light with a projection of no more than 150mm to avoid head-height obstructions and maintain clear passage.
Side passages are often the narrowest part of a property — sometimes as tight as 800mm between wall and fence. Fitting projection (how far the body extends from the wall) matters enormously here. A lantern-style fitting that projects 250mm or more will feel intrusive and risks being knocked by anyone carrying a bin or a bicycle.
Aim for fittings with a projection under 150mm. Many modern wall lights achieve this with a low-profile die-cast body and a downward-angled diffuser that throws light onto the path rather than outward. This also reduces light pollution into neighbouring gardens, which is a considerate choice in terraced or semi-detached settings.
Height placement is equally important. Mount the fitting between 2 and 2.4 metres above ground level. Too low and it becomes an obstacle; too high and the light cone misses the path surface entirely. If the passage is long — say, 6 metres or more — consider two fittings spaced evenly rather than relying on a single unit to cover the whole run. A single light at one end will leave the far section in shadow, which creates a genuine trip hazard at night.
What colour temperature works best in a side passage?
A warm white output of 2700K–3000K suits a side passage best, providing enough contrast to navigate safely without the harshness of cool white at close range.
Colour temperature affects both visibility and atmosphere. Cool white (4000K and above) is often chosen for security lighting because it renders detail sharply and feels alert. In a narrow side passage, however, that same starkness can feel unpleasant at close quarters — you are walking within half a metre of the fitting, not viewing it from across a garden.
Warm white in the 2700K–3000K range gives enough light to navigate confidently while remaining comfortable to pass under repeatedly. It also complements brick, render, and timber cladding more naturally than a blue-toned cool white.
For lumen output, 400–600 lumens per fitting is typically sufficient for a covered passage. Anything above 800 lumens in a confined space can cause glare, particularly if the fitting has a clear glass diffuser rather than a frosted one. If you are installing a fitting that takes an E27 lamp (a standard screw cap), you have the flexibility to swap bulbs later and fine-tune the output without replacing the whole fixture.
According to guidance from Electrical Safety First, outdoor electrical installations in privately owned properties should be inspected every ten years — a useful reminder to factor installation quality into your fitting choice from the outset.
Do you need planning permission to install a wall light on a side passage?
Most domestic outdoor wall lights are permitted development and need no planning permission, though listed buildings and conservation areas are subject to different
For the majority of UK homeowners, fitting an outdoor wall light to a side passage wall falls under permitted development rights. This means you can install it without submitting a planning application, provided the property is a standard residential dwelling and is not in a designated area.
Exceptions apply if your property is a listed building, sits within a conservation area, or has had permitted development rights removed by a planning condition. In those cases, even a modest external light fitting may require consent. The Planning Portal provides a clear summary of what falls within permitted development for householders, and it is worth a quick check before you commit to installation.
If you are a tenant rather than an owner, you will also need landlord consent before making any permanent electrical installation. This is separate from planning law but equally important to address before work begins.
For the electrical installation itself, any new circuit or significant modification to an existing outdoor circuit must be notified to your local building control authority under Part P of the Building Regulations. Using a registered electrician (NICEIC or NAPIT) covers this automatically, as they self-certify the work on your behalf.
Which styles of outdoor wall light suit a side passage best?
Lantern-style and caged wall lights suit a side passage well — they direct light downward, resist knocks, and maintain a tidy profile against a narrow wall.
Style choice in a side passage is partly aesthetic and partly practical. The passage is a functional space — bins go through it, bikes get wheeled along it — so a fitting needs to be robust enough to survive occasional contact and compact enough not to create an obstruction.
Three styles work particularly well:
- Lantern-style fittings with a downward-facing aperture keep the light cone focused on the path and look at home on traditional brick or rendered walls.
- Caged wall lights, such as the Cipher Caged Outdoor Wall Light, offer the glass protection of a lantern with an open industrial frame that is less likely to trap condensation and easier to clean.

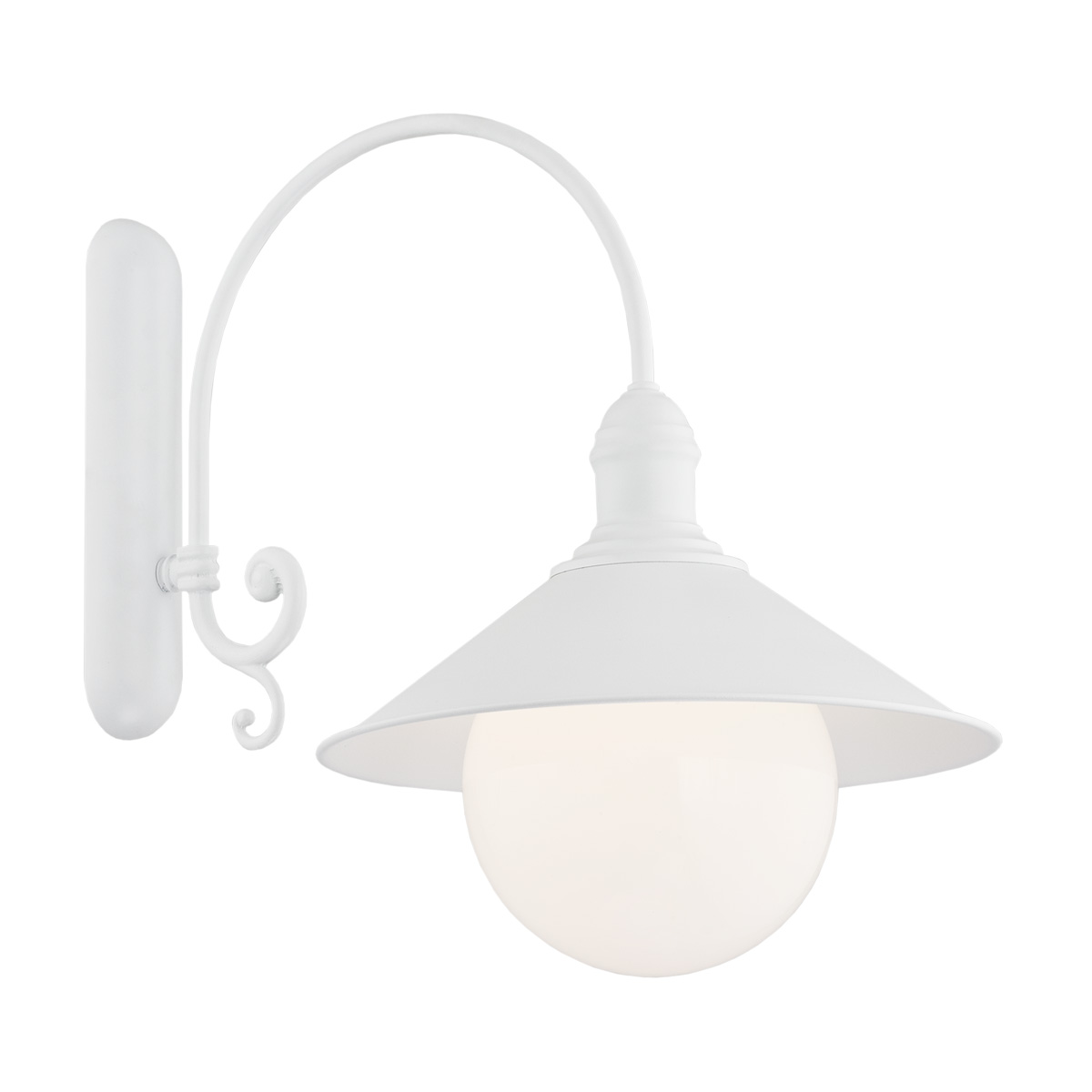

- Curved-arm fittings with a compact globe or cylindrical head project the light slightly away from the wall, which helps illuminate both the path and the wall surface for better overall visibility.
Avoid large statement lanterns designed for a front door or porch. Their proportions are wrong for a narrow passage and their projection is usually too great. Stick to fittings designed explicitly for wall mounting in outdoor utility areas — they are engineered for exactly this kind of environment and tend to be more durable in practice.
Frequently asked questions
Can I use a PIR sensor fitting in a covered side passage?
Yes — a PIR-equipped wall light works well in a passage because movement is predictable and linear, meaning the sensor triggers reliably every time someone walks through. Choose a model with an adjustable sensitivity range to avoid false triggers from cats or blowing debris.
Is IP44 sufficient if the passage has no roof?
No — if the passage is fully open to the sky, you should use a fitting rated IP65 or above, which is sealed against low-pressure water jets and sustained rainfall rather than just splashing.
How many wall lights do I need for a 6-metre side passage?
Two fittings are usually sufficient for a 6-metre run — one near each end, mounted at 2–2.4 metres high. This avoids the dark mid-section that a single fitting inevitably creates.
What bulb type should I use in an outdoor wall light with an E27 fitting?
Use a GLS-shaped or golf-ball LED rated for outdoor or damp conditions. Aim for 400–600 lumens and 2700K–3000K colour temperature for a comfortable, practical result in an enclosed passage.
